From years in the field, I’ve learned this isn’t just a one-off mistake—it’s one of the most common (and costly) issues I see. The problem isn’t the homeowner; it’s the way filters are labeled. Manufacturers print nominal sizes that don’t reflect the actual size your system needs, and that small mismatch creates big problems over time.
This guide is designed to eliminate that guesswork. With our filter chart and practical advice drawn from real-world service calls, you’ll learn exactly how to measure, match, and select the right filter every time. More importantly, you’ll understand why that precision matters—because from what I’ve seen firsthand, using an air filter sizes chart to find the right fit doesn’t just save you money, it extends the life of your HVAC and delivers cleaner, healthier air.
Top Takeaways
Box size = nominal, not actual.
A half-inch gap hurts efficiency and air quality.
68% of homes have undersized grilles.
The chart links actual size to the right nominal size.
Correct sizing = cleaner air, better airflow, lower bills, longer system life.
Why Accurate Measurement Matters for Air Filters

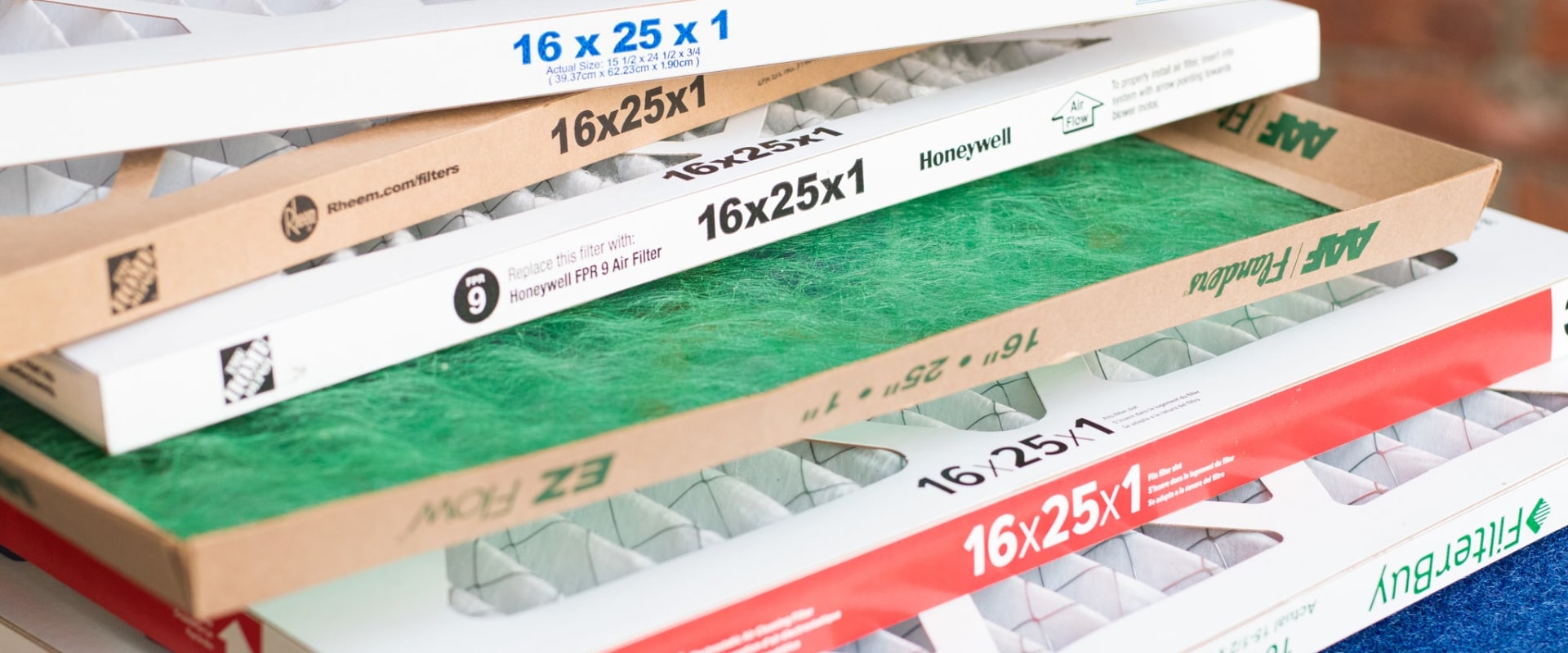

When it comes to air filters, close enough isn’t good enough. The size printed on the box—the nominal size—is a rounded figure that rarely reflects the actual dimensions of the filter. In many cases, the real measurement is up to half an inch smaller. That small gap can make a big difference, allowing unfiltered air to bypass the filter, coating your ducts in dust, and forcing your HVAC system to work harder than it should.
The air filter sizes chart takes the guesswork out of shopping. By showing nominal and actual sizes side by side, it helps you match your exact measurements with the correct replacement filter every time. No more wasted trips to the hardware store, no more “almost fits.”
Getting the right fit isn’t just about convenience. It protects your HVAC system from unnecessary strain, helps maintain strong airflow, and ensures your home enjoys cleaner, healthier air. In fact, in my experience, homeowners who switch to properly sized filters often notice improvements in comfort and even lower energy bills within weeks.
“In all my years working with HVAC systems, I’ve found that most airflow problems don’t come from failing equipment—they come from filters that almost fit. That half-inch difference between the box label and the true size can undo everything. Once homeowners start using a proper filter size chart, they finally stop guessing, protect their system, and notice cleaner air almost immediately.”
Case Study & Real-World Examples
The Half-Inch Gap
Georgia homeowners replaced “20x25x1” filters regularly.
Slot was actually 19.5x24.5x0.75.
Dust bypassed filter, coil clogged, bills climbed.
Correct size from chart → lower bills, cleaner air, quieter system.
Older Homes & Undersized Grilles
68% of U.S. homes have undersized grilles (DOE).
Filters “fit” but restrict airflow.
Leads to frozen coils, overheated motors, rising costs.
Common in older homes where designs predate modern filters.
The Easy Slide-In
Florida family proud filter “slid right in.”
Loose fit meant no seal, unfiltered air bypassed.
Coil clogged within 2 years.
Correct snug size → better airflow, less dust, lower maintenance.
Key Lessons
Even a half-inch gap can undo proper maintenance.
Most issues stem from design flaws, not homeowner neglect.
The air filter sizes chart bridges box labels with the true fit your system needs.
Supporting Statistics with Real-World Perspective
Undersized Filter Grilles
Nearly 68% of U.S. homes have undersized grilles (energy.gov).
Filters “fit” but leave gaps or choke airflow.
I see this often—design flaws drive higher bills and early wear.
Filter Resistance
Filters can cause up to 50% of system pressure drop.
Reducing resistance from 0.28 → 0.10 in. WC = 10.8% efficiency gain (proctoreng.com, cleanair.camfil.us).
In the field, weak airflow often traces back to filter size—not motors or ducts.
Codes Catching Up
California’s Title 24 limits pressure drop to 0.05 in. WC (energy.gov).
Confirms what techs have long known—filters impact performance.
I’ve seen brand-new systems underperform due to poor filter design.
Key Takeaways
Most systems start mismatched.
Filters directly affect airflow, bills, and system life.
Correct sizing protects comfort and prevents costly failures.
Final Thought & Opinion
What I’ve Seen
Most filter issues come from confusion, not neglect.
Homeowners rely on box labels, but sizes don’t match reality.
A half-inch gap leads to wasted energy, dusty air, and higher bills.
What the Data Shows
Most homes are mismatched from installation.
Filters can cause 50% of airflow resistance.
Building codes now recognize the problem.
What Families Experience
Cleaner air within days of correcting filter size.
Better airflow and quieter systems.
Stabilized energy costs.
My Opinion
The air filter sizes chart is more than a shopping tool.
It bridges the gap between box labels and real system needs.
Correct sizing saves money, extends HVAC life, and improves comfort.
Next Steps: Measure Right Every Time
Measure Your Filter
Remove from the unit.
Record exact length, width, thickness.
Ignore the box label.
Use the Chart
Match actual size to the air filter sizes chart.
Confirm the correct nominal size.
Pick the Right MERV
MERV 8 standard.
Replace on Schedule
Every 90 days in most homes.
Every 30–60 days with pets or allergies.
Use reminders to stay consistent.
Monitor Your System
Check airflow after installing.
Watch for less dust and more comfort.
Track bills for savings.
Call a Pro if Needed
If grilles are undersized.
If airflow issues continue.
Frequently Asked Questions
Why doesn’t the size on the filter box match the actual filter measurement?
The number on the box is the nominal size—a rounded figure used for labeling. The actual size is usually up to half an inch smaller, which explains why many filters don’t fit snugly.
How can I measure my air filter correctly?
Remove the filter and use a tape measure to record exact length, width, and thickness. Compare those numbers with an air filter sizes chart to find the correct nominal size.
What happens if I keep using the wrong size filter?
Even small gaps allow unfiltered air to bypass the filter. This can clog your ductwork, reduce indoor air quality, strain your HVAC system, and increase energy bills.
How often should I replace my air filter once I know the correct size?
Most homes need replacements every 90 days. Homes with pets, allergies, or higher use should be replaced every 30–60 days. Always check monthly to see if it looks dirty sooner.
What if my measurements don’t match any size listed on the chart?
If your filter doesn’t match a standard size, you’ll likely need a custom filter. Many suppliers make them, and an HVAC professional can confirm whether your filter slot or grille needs adjustments.
